HEUI PT - HEUI Injector Test
Premium, Exact and fast HEUI TESTING
Performing complete and accurate test of multi-brand injectors and Pumps
HEUI injector test bench is applied to test ;
- CAT C7
- CAT C9
- CAT 3126 (Ford 7.3)
- CAT 3408
- FORD Powerstroke (4 pin)**
- Isuzu Trooper **
Also You can able to test C7/C9 high pressure pumps as optional.
**Please check the OPTIONAL tab below to see additional auxiliary tools for other models.
Fill the Form, Get a Price List!

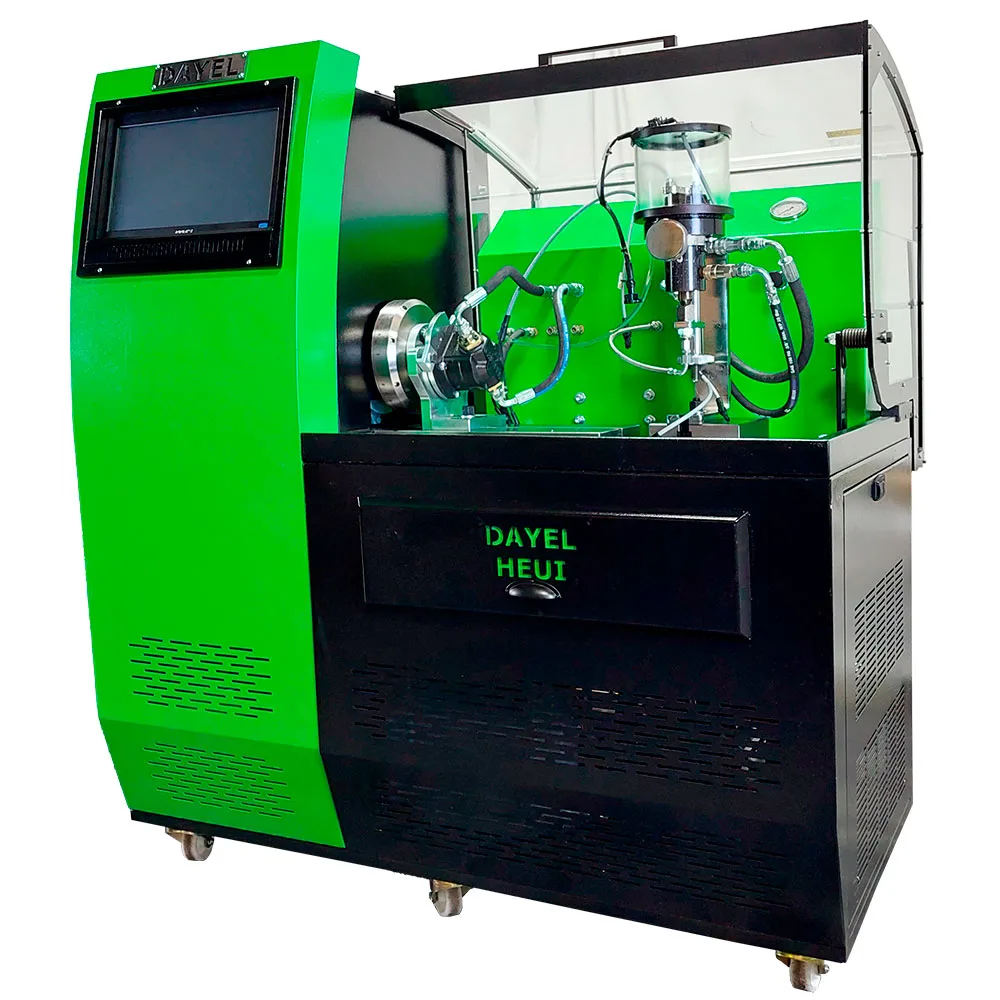

HEUI PT - Diesel Pump Testing
Vertical layout and glazed housing, allows easier assembly for testing and better view of return backflow .
The hydraulics designed and built for a high output working pressure of 300 bar.
Hydraulic System sets pressure automatically, testing continues without interruption
There are 2 separate tanks for Iso test oil and hydrolic oil
Tank level and tempature control with efficiency cooling and heating system.
Dynamic electronic mass measurement for quantity
There are ready-made test plan templates for different models and brands
New test plans can be created or copied very easily with new heui software.
| Supply voltage | AC 380 (3P+N+GND) |
| Motor Power | 15 Hp |
| High pressure pump pressure | 0-300 Bar |
| Low Pressure | 0,5 – 6 bar |
| RPM | 0-4000 rpm adjustable |
| Flow Sensor Filter | 20uM |
| Inj Flow Sensor Range | 0.1 – 500 cc /min |
| Pump Flow Sensor Range | 1-300 L/h |
| Dimensions (L x H x W) | 1350x1500x750 mm |
| Weight | 460 Kg |
| Hydrolic Oil Tank Capacity/Type | 18 lt (ISO 4113) |
| Fuel Oil Tank Capacity/Type | 8 lt (NR10) |
Code | Description | Pieces |
1.02.03.002 | Caterpillar 3126 B injector Test adaptor | 1 pcs |
1.02.03.004 | Caterpillar C9 injector Test adaptor | 1 pcs |
1.01.11.020 | Selenoid Inj Main Test Cable | 1 pcs |
1.01.11.021 | Piezo Inj Main Test Cable | 1pcs |
1.01.11.033 | CAT Type Heui injector cable | 1 pcs |
1.01.11.004 | LKW Type Inj. Cable | 1 pcs |
1.01.11.009 | Universal Inj Cable | 1 pcs |
4.02.05.091 | Laser Printer | 1 pcs |
4.02.12.148 | Installation USB Flash disk | 1 pcs |
Touchpen | 2 pcs | |
4.02.12.191 | Keyboard and Mause set (Wireless) | 1 pcs |
SOME INJECTORS AND PUMPS REQUIRED EXTRA EQUIPMENTS AND ACCESSORIES. PLEASE CONTACT US ABOUT YOUR TYPES.
1.02.03.001 | Navistar VDO injector Test adaptor | 1 pcs |
1.02.03.005 | ISUZU Tropper injector Adaptor | 1 pcs |
1.02.03.006 | Caterpillar 3408 injector Test adaptor | 1 pcs |
1.02.03.007 | Ford powerstroke 6.0/7.2 injector Test adaptör | 1 pcs |
